法國interscience Scan 1200自動菌落計數器

法國interscience Scan 1200自動菌落計數器適應與實驗室里*有的媒介，使用*適，精率高。

法國interscience Scan 1200自動菌落計數器產品簡介：

Scan? 1200 高分辨率全自動彩色菌落計數器，適應與實驗室里*有的媒介，使用*適，精率高。具有良好的重現性，自動保存圖像和數據結果。

法國interscience Scan 1200自動菌落計數器主要特點：

1. HIGH RESOLUTION & 高性能

很小菌落的大小 : 0.05毫米

在1秒內能夠檢測到1000個菌落

活動目標影像 (數字變焦 x28)

在5分鐘內可接種30個培養皿(在預先調整的情況下)

Fully automatic lighting: lights controlled by computer and motorized background color

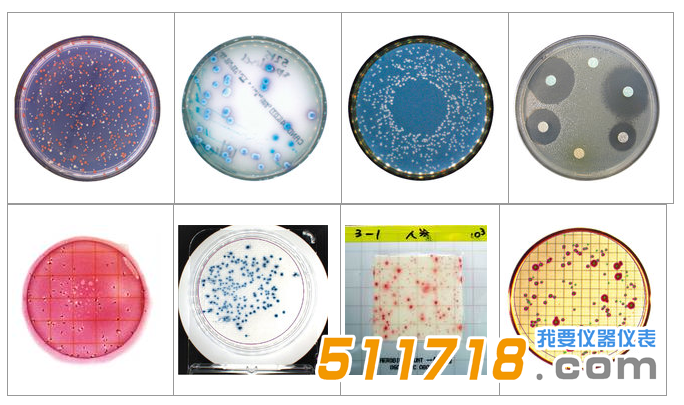

2. 可計數類型

3. SOFTWARE EFFICIENCY

*有功能只需一個窗口

自動調整亮度及對比度

Automatic corrections of the agar defects

自動分離融合的菌落

計數網格自動取消

每一個菌落都會用叉號標記

多邊形排除區域

Pre-set medias: PCA/TSA, MRS, VRBL, TBX, TSC, Baird Parker, GVPC, L.Mono, YM

4. INHIBITION ZONE, AGAR WELL

Rapid detection: up to 8 antibiotic sensitivities in 1 click

Inhibition zones and agar wells can be manually added or deleted

Built-in antibiotic database (CA-SFM, French Society of Microbiology)

Precision of inhibition zone measurement: 0.3 mm

Precision of agar well measurement: 0.3 mm

Reads on: Muller Hinton agar, blood agar, chocolate agar

5. FULL TRACEABILITY

Harmonization of the results within a team

Automatic archiving and printing of data: pictures, comments & results

External traceability (Session saved, Excel?, PDF, JPEG, BMP, Scan? printed report)

Internal traceability (Barcode, file archive, LIMS connection)

Securization of the sessions (Compliance with CFR 21 part 11: system securization, operational controls and documentation management)

6. EXCELLENT REPRODUCIBILITY AND REPEATABILITY

GLP (Good laboratory Practice)

CFR 21 Part 11

Scan? SOFTWARE

Scan? automatic colony counters use an exclusive software developped by INTERSCIENCE: evolutive, user-friendly and powerful.

There are numerous advantages in using Scan? counting software:

Only one clic to count

Only one setting cursor

Traceability: automatic saving of data, Excel? export

To try the demo version with your samples, please identify below or register here

下載Scan試驗版軟件。

1. VISUALISATION WINDOW

Detected colonies are highlighted and marked with a cross.

2. PARAMETERS WINDOW

Only one cursor to optimize counting. customizable settings adaptable to any kind of agar.

3. RESULTS WINDOW

All previously recorded data can be checked anytime.

EASY DATA EXPORT：

Scan? software provides easy ways to export quickly your results:

Work sessions saving

PDF export

JPEG, BMP export

Results exported to Excel?

Scan? printed report

EXAMPLE OF A SCAN? PRINTED REPORT：

Check in a glance images before and after counting, complete sample information, comments and results.

法國interscience Scan 1200自動菌落計數器技術參數：

Technical specifications of the model.
Scroll down for the comparison with other models of the range.

	Scan? 1200
Reference	437 000
Camera	HD CCD color camera
Lens	HD japanese lens
Digital zoom	x 28
Resolution	1,2 megapixels
Counting time	1000 colonies per second
Minimum size colony	0.05 mm
Lighting	Long-life white LEDs / Dark Field
Lighting system	Automatic: 6 combinations, top and/or bottom light white or black background
Counting	Automatic, with manual control
Counting on Petri dishes	55-90 mm
Counting on pour, surface, Spiral?and circle plated dishes
Counting on chromogenic dishes
Inhibition zone reader
Inhibition zone measurement accuracy	0.3 mm
Counting on PetriFilm?
Counting on RIDA? Count or NeoFilm?
Counting on Compact Dry?
Counting on filtration membranes
Automatic detection of paper disks, agar wells, peni-cylinders
Results /Data export	Recountable Scan? session, PDF report, JPEG, PNG, BMP, Excel?
Color detection	7 colors on the same dish
LIMS/SIL connection
USB connection
Languages	English, French, Japanese, Chinese, Russian, Spanish, German
Dimensions (w x d x h)	28,5 x 26,5 x 37,5 cm
Weight	9,4 kg
Voltage	100-240 V ～ 50/60 Hz
Power	20 W
Processor	Intel (recommended) AMD Phenom or better
Operating systems	Windows? 7 Service Pack 1 or Windows? 8 or 10
Frequency	2 Ghz or superior
RAM	3 Go or better
Graphic card	AMD or NVIDIA (chipsets are not recommended)
Equipment	USB 2.0 port / CD-ROM reader
Screen	1280 X 1024 pixels and more
Computer	Desktop computer recommended
Hardware	Stainless steel
Software update (after registration)	3 years
Guarantee (after registration)	3 years
In compliance with	GLP (Good laboratory Practice), CFR 21 part 11, ISO 15189, ISO 7218, ISO 4833-2, NF V08-034, NF V08-100, AOAC 977.27, FDA-BAM standards

Delivered with : Scan? software CD-ROM/ Connection cables / 3 control dishes / User’s manual / IQ/OQ/PQ
